Forget about digital clipping and focus on the shot with the Zoom F6, an ultra-compact, multitrack field recorder with 32-bit float technology for distortion-free dynamic range, and up to 14 tracks of simultaneous recording for professional and enthusiast applications on set and in the field. Slide it in a sound bag, sling it over your shoulder, or mount it to a camera; the F6 packs quantity and quality into a rugged frame that's more than ready for filmmaking, production/location sound mixing, sound effects recording, and electronic news gathering (ENG).
From the large, informative color display and user-friendly controls to the flexible powering options and precision timecode functionality, the F6 is properly equipped to please novices and demanding veterans alike. Whether you need long-duration stereo recording for an interview, redundant capture of multi-mic setups for a video shoot, or Ambisonics sound files for virtual reality and 360-audio projects, the F6 has the modes, resolutions, and media support to handle your crucial audio tasks.Plus, its operational versatility ensures that the F6 will always enhance your workflow, be it simple, complex, or always changing. You can feel confident using it as your main recorder, a USB audio interface for your dedicated computer rig, or a backup unit for added safety.
32-Bit Float Recording Avoids Digital Clipping
The F6 is designed to handle the reality of real-world dynamics. Since source levels can change unexpectedly, you need a system that can capture everything from pin-drop quiet to roaring loud without compromise or clipping. With 32-bit float resolution and dual-path A/D converters, the F6 delivers immense dynamic range to cover the audible spectrum with ease. Digital clipping is a thing of the past.
Configurable Recording Settings for Any Situation
The F6 boasts a slew of recording modes and resolutions to choose from—record all six inputs at a maximum resolution of 192 kHz in 24-bit linear or 32-bit float, or (thanks to Zoom's dual-path A/D converters) record them simultaneously in at up to 96 kHz in 24-bit and 32-bit float while printing a stereo mix.
Versatile Multitrack Modes
Maximize portability by recording directly to an SD/SDHC/SDXC card (available separately) for up to 512GB of storage space. Select MP3 format if you're only recording the stereo mix and really need extended time and minimal file size. Using the BWF-compliant WAV format for uncompressed audio quality and industry-standard file compatibility, you can run the F6 in 6-track mode (six inputs recorded in 24-bit or 32-bit float), or 14-track mode (six inputs recorded in 24-bit and 32-bit float, plus a stereo mix). Or select Ambisonics mode to capture four channels of Ambisonics-compatible audio and have two channels to spare for traditional mics

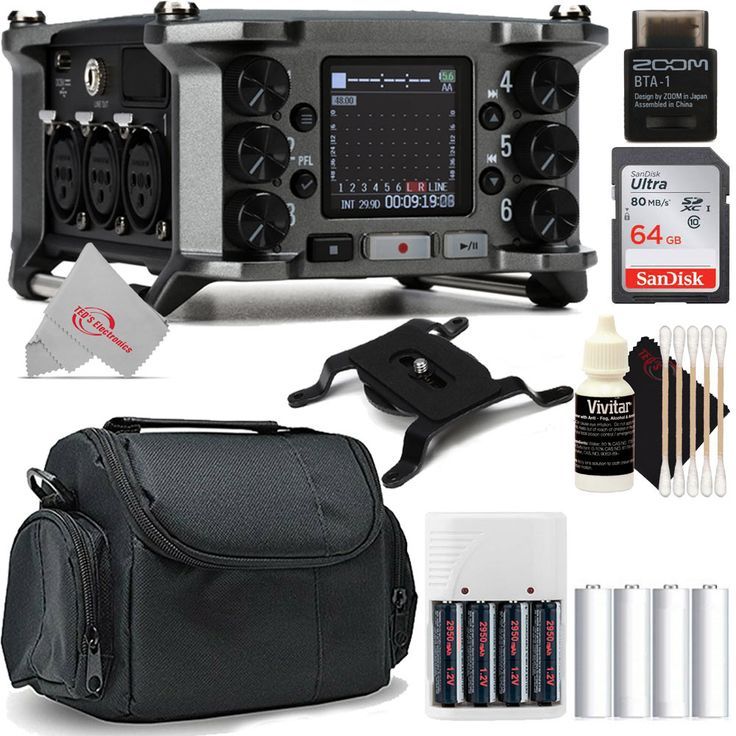

In the Box

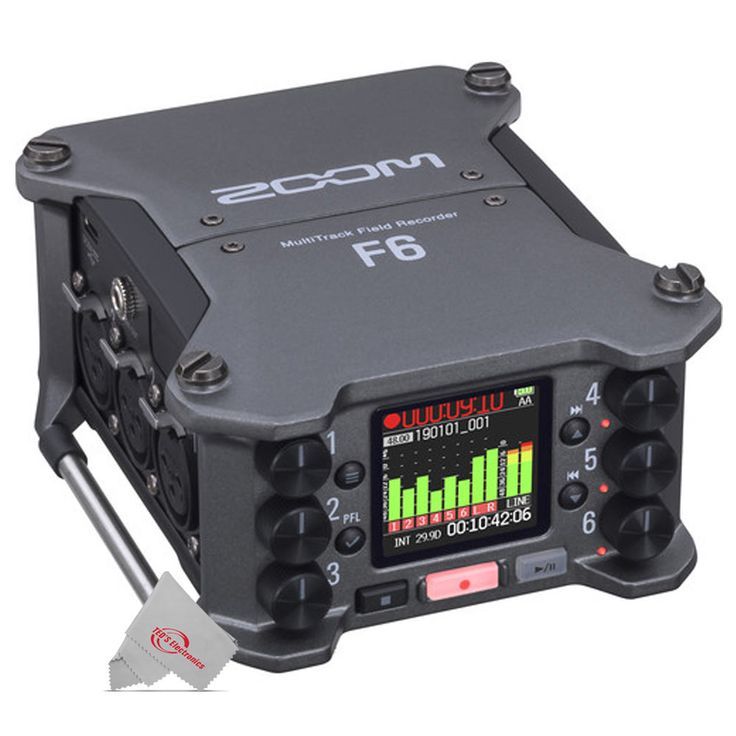

- Zoom F6 6-Input / 14-Track Multitrack Field Recorder
- Camera-Mount Adapter
- 4 x AA Batteries

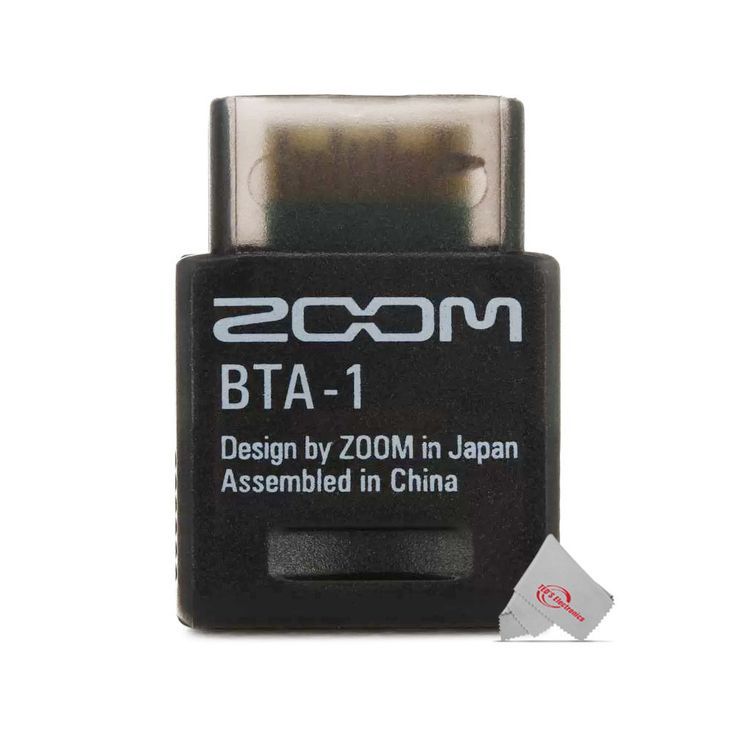

- ZOOM BTA-1 Bluetooth Adaptor

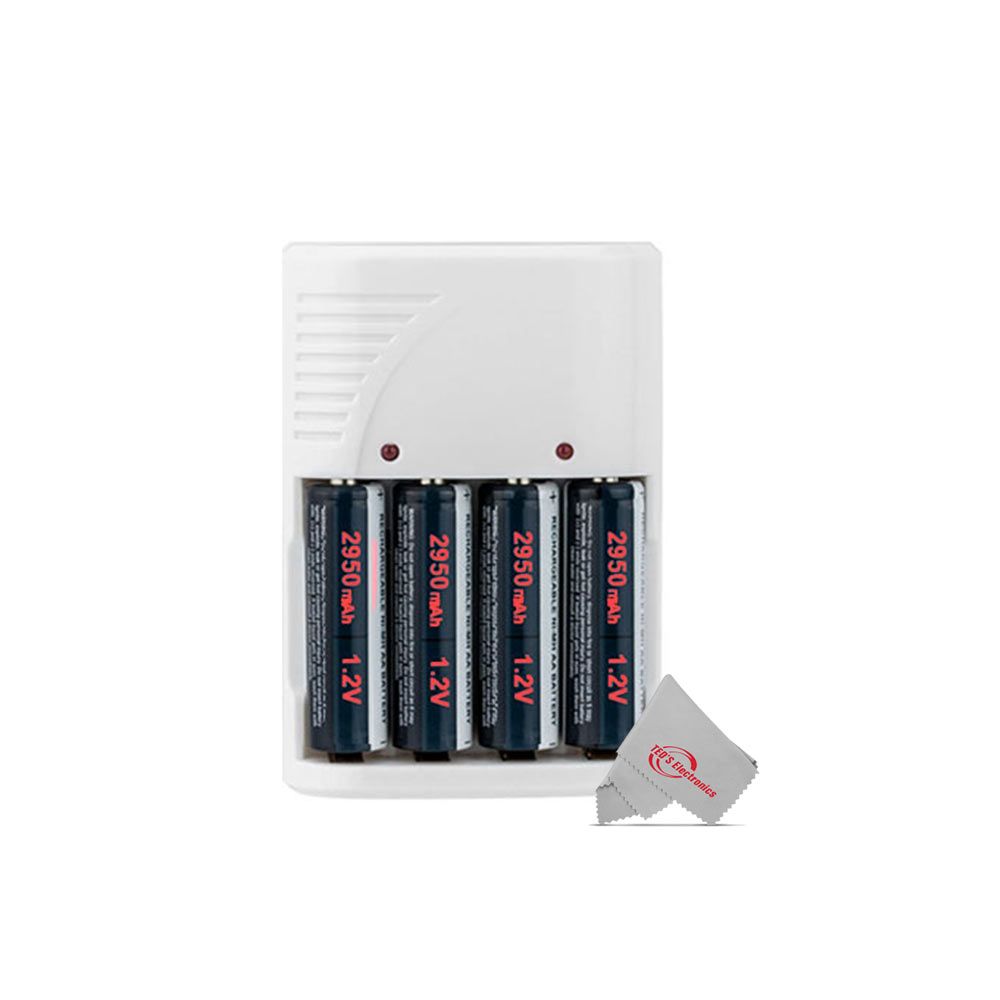

- Battery & Charger

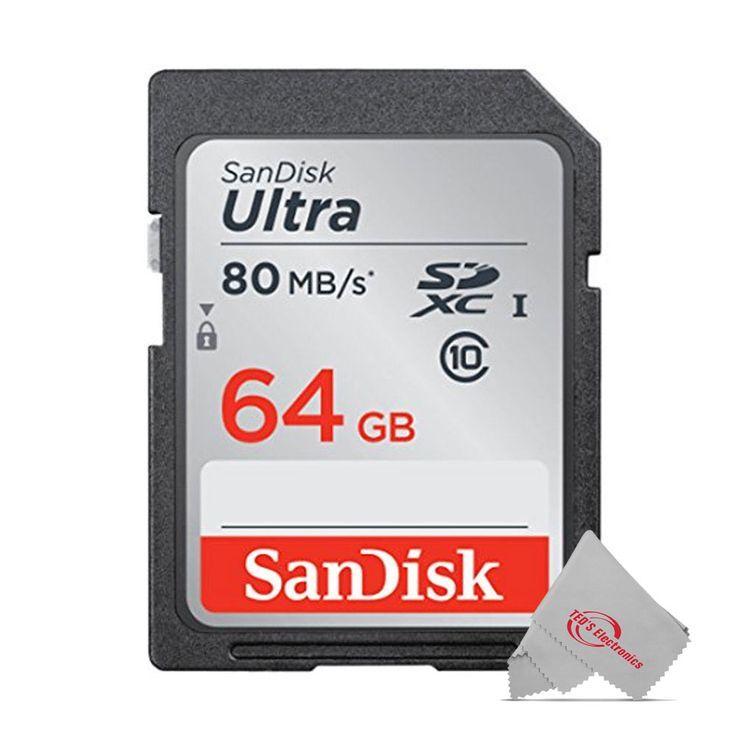

- 64GB Memory Card

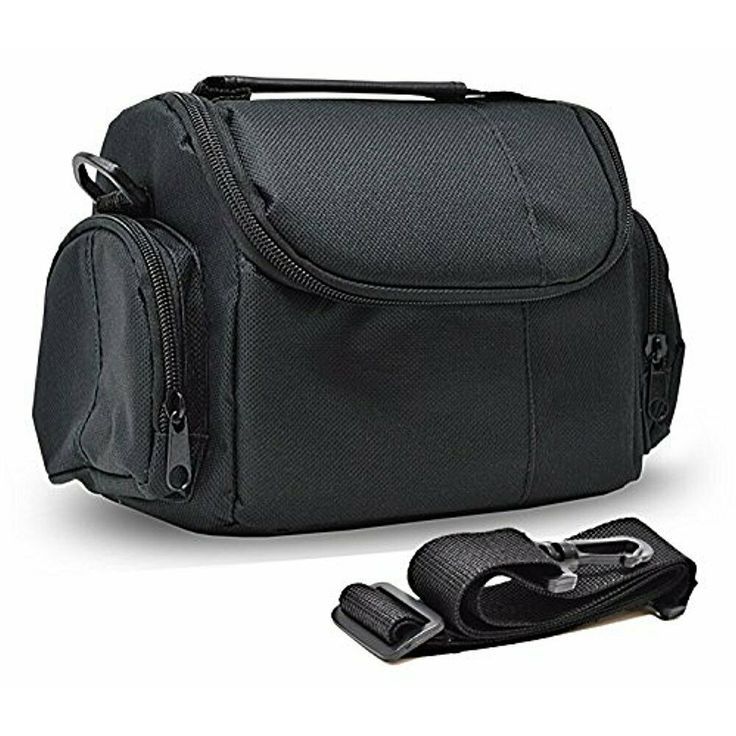

- Case

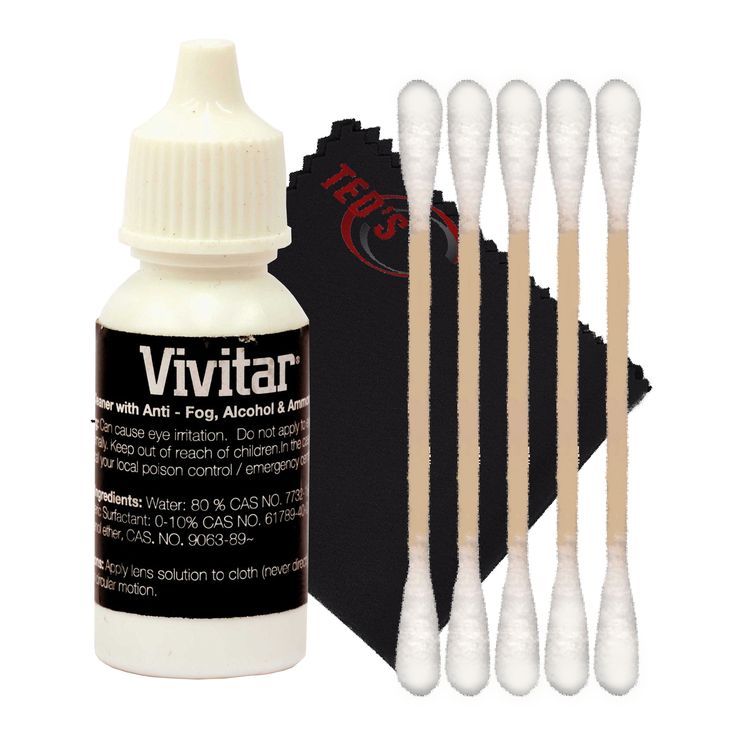

- Cleaning Kit
Zoom F6 Specs
Portable Recorder
Number of Tracks | WAV: 8 (6 Inputs + Stereo Mix) |
Max Sample Rate/Resolution | 192 kHz / 32-Bit |
Microphone | None |
Built-In Speaker | None |
Display | Color LCD (Backlit) |
Memory Card Support | SD, SDHC, SDXC (Up to 512 GB) |
Internal Storage | None |
Recording
Audio File Formats | BWF, MP3, WAV, iXML |
Sample Rates | WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz |
Bit Depth | 16 / 24 / 32-Bit |
Bit Rates | 128 to 320 kb/s |
Signal Processing | Limiter |
Timecode | Yes |
Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF |
Clock Accuracy | �0.2 ppm (Timecode) |
Recording Time | WAV 48 kHz/24-Bit: 57.69 Mins per GB (Stereo) WAV 192 kHz/24-Bit: 14.41 Mins per GB (Stereo) |
Connectivity
Analog I/O | 6 x XLR 3-Pin Female Balanced Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
Digital I/O | 1 x 1/8" / 3.5 mm TRS Timecode In/Out |
Phantom Power | +24 / 48 V |
Phantom Power Current | ? 10 mA per Channel |
Host Connection | 1 x USB Type-C (I/O, USB 2.0) |
Performance
Gain Range | Mic Inputs: +12 to +75 dB Line Inputs: +8 dB to +55 dB |
Max Input Level | Mic Inputs: +4 dBu Line Inputs: +24 dBu |
Max Output Level | Line Outputs: +10 dBV |
Headphone Output Power | 100 mW per Channel into 32 Ohms |
Dynamic Range | Line Outputs: 95 dB Headphone Outputs: 108 dB |
Impedance | Mic Inputs: ?3 Kilohms Line Inputs: ?5 Kilohms Line Outputs: ?100 Ohms Headphone Outputs: ?15 Ohms Timecode Input: 4.6 Kilohms Timecode Output: ?50 Ohms |
EIN | ?-127 dBu (A-Weighted) |
Power
Power Options | Batteries or AC/DC Power Adapter |
Battery Type | 4 x AA (Included) 1 x L Series (Not Included) |
Approximate Battery Life | WAV 48 kHz/16-Bit: 7.5 Hours (Alkaline, 2 Channels, Backlit Display, Phantom Off, with Headphones) 10.5 Hours (NiMH, 2 Channels, Backlit Display, Phantom Off, with Headphones) 16.5 Hours (Lithium, 2 Channels, Backlit Display, Phantom Off, with Headphones) WAV 48 kHz/24-Bit: 5 Hours (Alkaline, All Channels, Backlit Display, Phantom Off, with Headphones) 7 Hours (NiMH, All Channels, Backlit Display, Phantom Off, with Headphones) 10.5 Hours (Lithium, All Channels, Backlit Display, Phantom Off, with Headphones) WAV 192 kHz/24-Bit: 0.5 Hours (Alkaline, All Channels, Backlit Display, Phantom On, with Headphones) 1.5 Hours (NiMH, All Channels, Backlit Display, Phantom On, with Headphones) 3.5 Hours (Lithium, All Channels, Backlit Display, Phantom On, with Headphones) |
AC/DC Power Adapter | 5 VDC (Not Included) |
Physical
Dimensions | 3.9 x 2.5 x 4.7" / 100 x 62.9 x 119.8 mm |
Weight | 1.2 lb / 530 g |
Packaging Info
Package Weight | 2.7 lb |
Box Dimensions (LxWxH) | 10 x 7.5 x 5" |
