The Vidpro XM-WTTR Dual Channel UHF Wireless Lavalier Microphone Set With 2 Transmitter Body-Packs And 1 Receiver Unit Combining Audio Streams In 2-Person Interviews, the two body-pack transmitters with lav mics communicate with one receiver unit combining the audio in 2-person interviews, ENG/EFP and DSLR video recording.
Latest UHF technology delivers ultra-high quality, crystal clear pro-grade audio with 48 user-selectable UHF Channels to choose from.
Features
Specifications
Transmitter
Receiver
Item Includes
Latest UHF technology delivers ultra-high quality, crystal clear pro-grade audio with 48 user-selectable UHF Channels to choose from.
Features

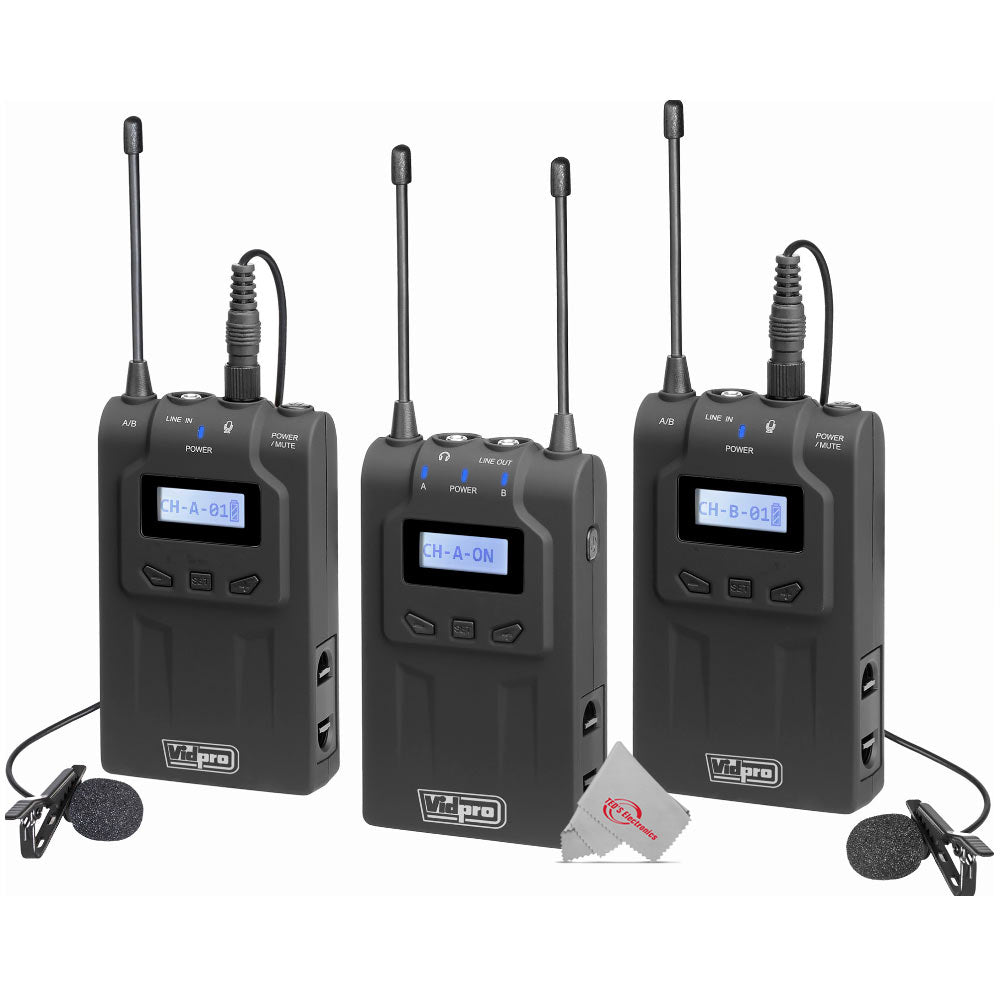

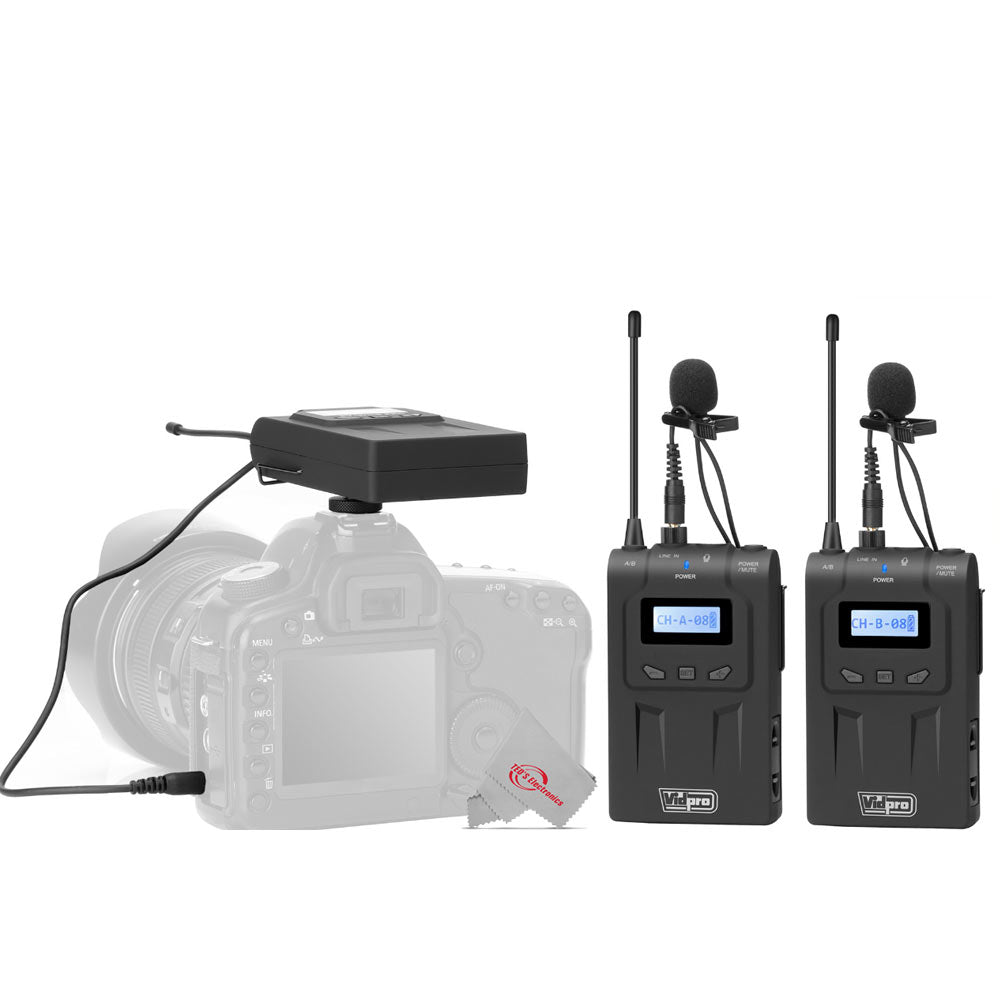

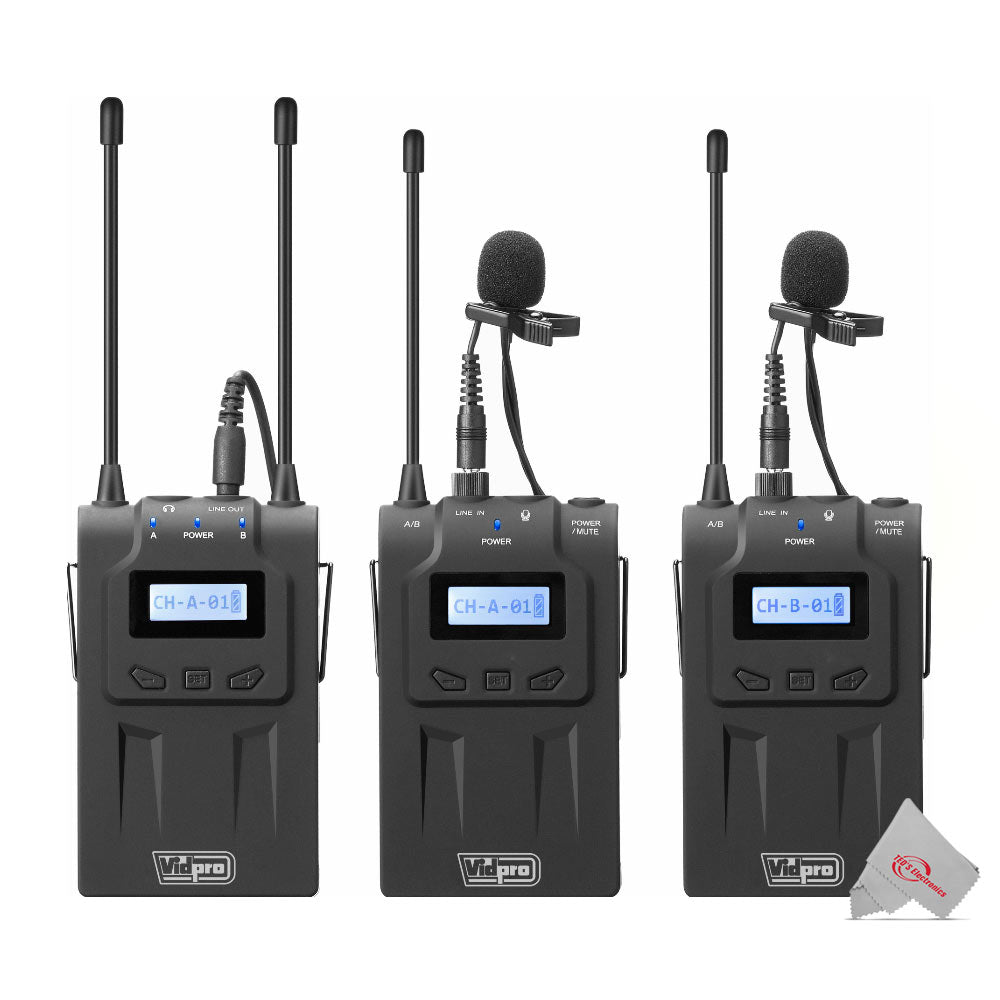

- Two body-pack transmitters with lav mics communicate with one receiver unit combining the audio in 2-person interviews, ENG/EFP and DSLR video recording.
- Latest UHF technology delivers ultra-high quality, crystal clear pro-grade audio with 48 user-selectable UHF Channels to choose from.
- Powerful transmit range of up to 300 feet (line of sight) and over 6 hours of continuous operation using 2 AA batteries (sold separately)
- Transmitter units feature backlit LCD displays, line-in and MIC inputs plus a selectable mute switch.
- Dual channel wireless receiver unit features stereo and mono modes plus an additional output for live headphone monitoring.
Specifications
- System
- Oscillator Type: PLL Synthesized Control
- Carrier Frequency Range: 556mHz-595mHz
- 556.71 MHz-575.98 MHz (Transmitter A)
- 576.39 MHz-595.66 MHz (Transmitter B)
- Channels: 48
- Frequency Response: 40Hz-18KHz +/- 3db
- Operational Range: 300' (100m) unobstructed
- Package Dimensions: 11"W x 9.5"H x 2"D
- Package Weight: 2lb 2oz
Transmitter
- RF Output Power: 10mw
- Spurious Emissions: 250nW or less
- Audio input connector: 3.5mm Mini-Jack
- Audio input level: -60 DBV
- Reference Deviation: 5Khz
- Input Frequency: 20Hz - 20KHz
- Power Supply: 2 AA Batteries
- Dimensions: (HxWxL) 4.2" x 2.6" x 1.1"
- Weight: 95g (3.4oz) without batteries
Receiver
- Audio input connector: 3.5mm Mini-Jack
- Signal to noise ratio: 70dB
- Distortion: 0.8% (-60dBV, 1 KHz input)
- Earphone output: 30mW, 15 Ohms/1Khz
- Audio Output Level: -60 DBV
- Power Supply: 2 AA Batteries
- Dimensions: (HxWxL) 4.2" x 2.6" x 1.1"
- Weight: 98g (3.5oz) without batteries

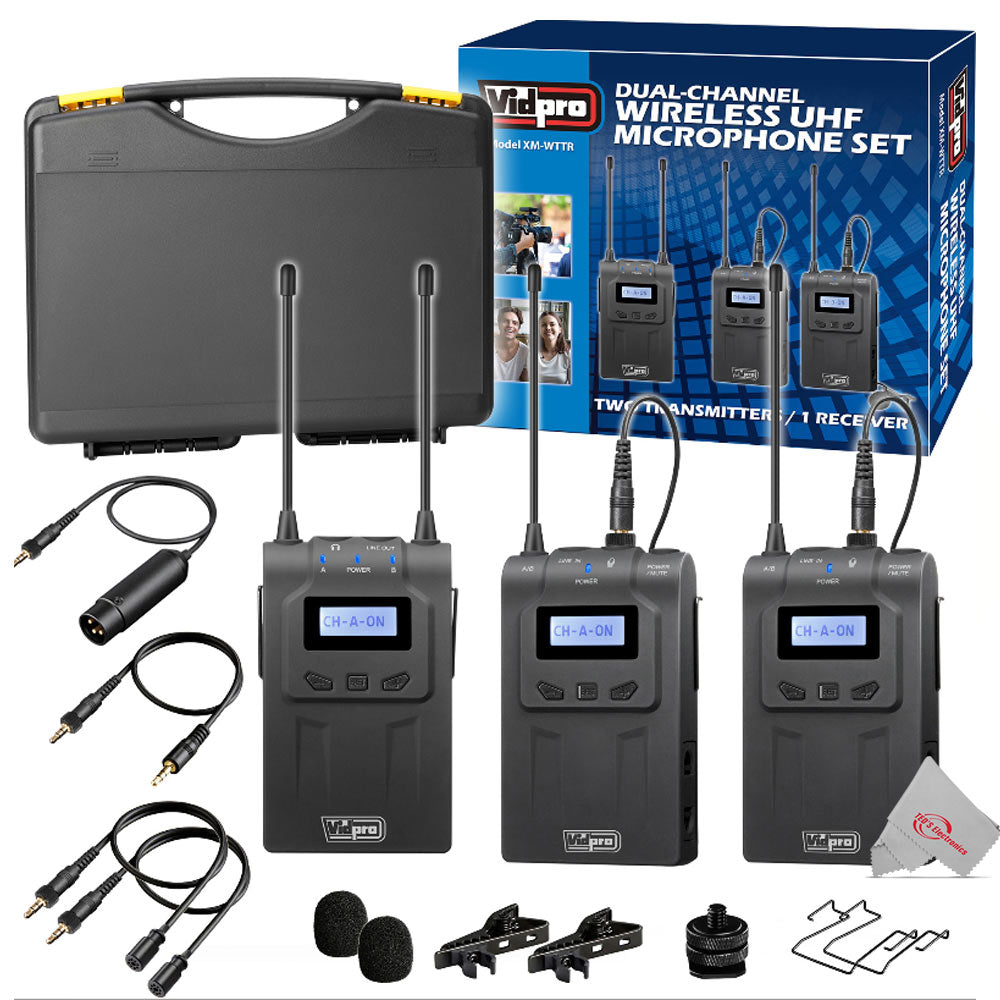

Item Includes
- 2x Wireless Transmitters
- 1x Wireless Receiver
- 2x Lavalier Microphones
- 2x Clip Holders & Foam Windscreens
- 1x Stereo 3.5mm Audio Cable
- 1x Stereo XLR Audio Cable
- 1x Camera Shoe Mount
- 2x Belt Clips
