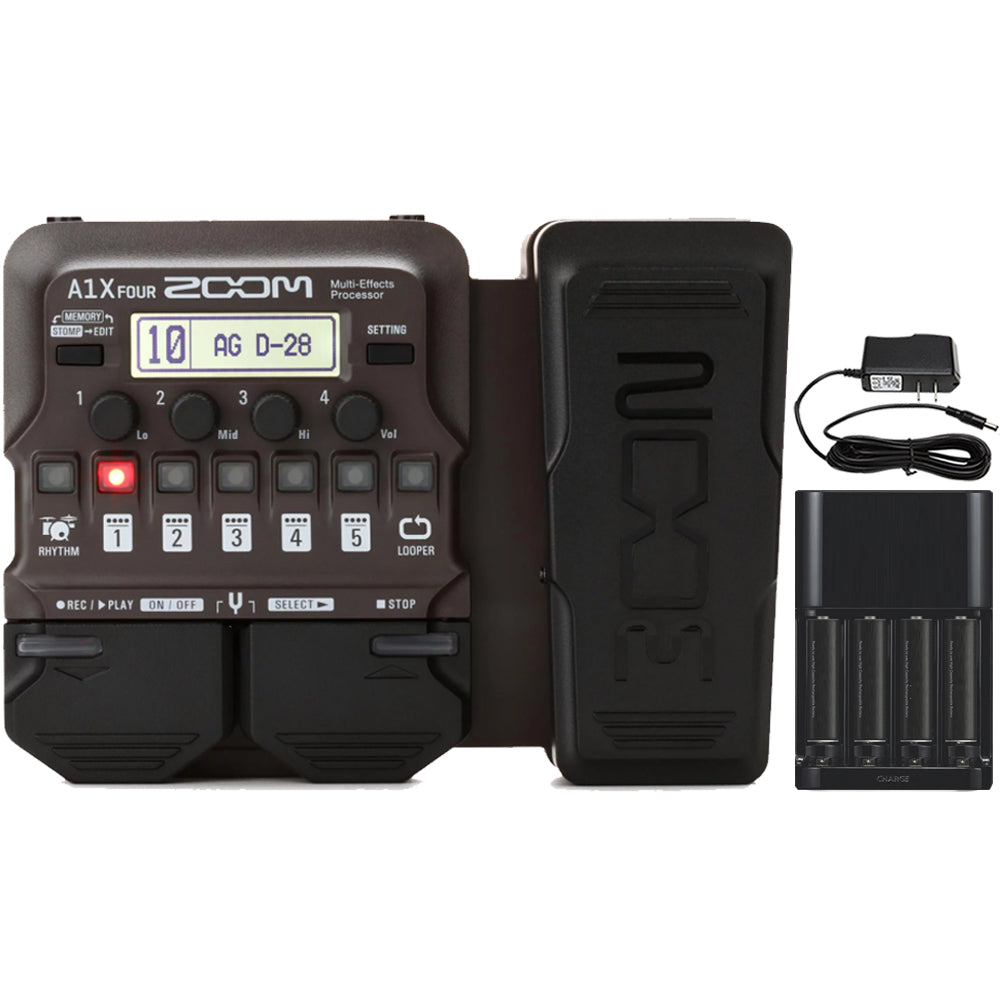

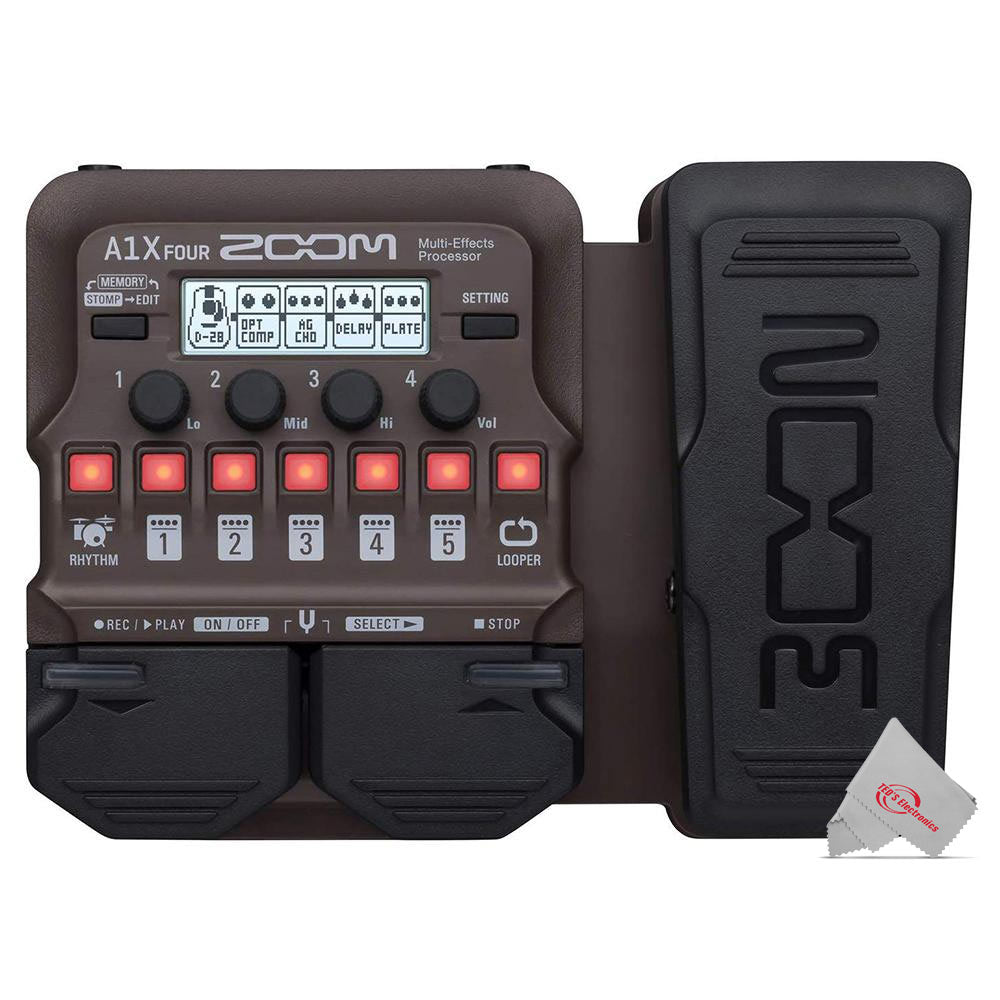

Zoom A1X Four Acoustic Instrument Multi-Effect Processor with Pig Hog Power Supply

$228.99 $155.99

Condition: New

Vendor: Zoom SKU: ZM-ZA1XFOUR-K1
Description

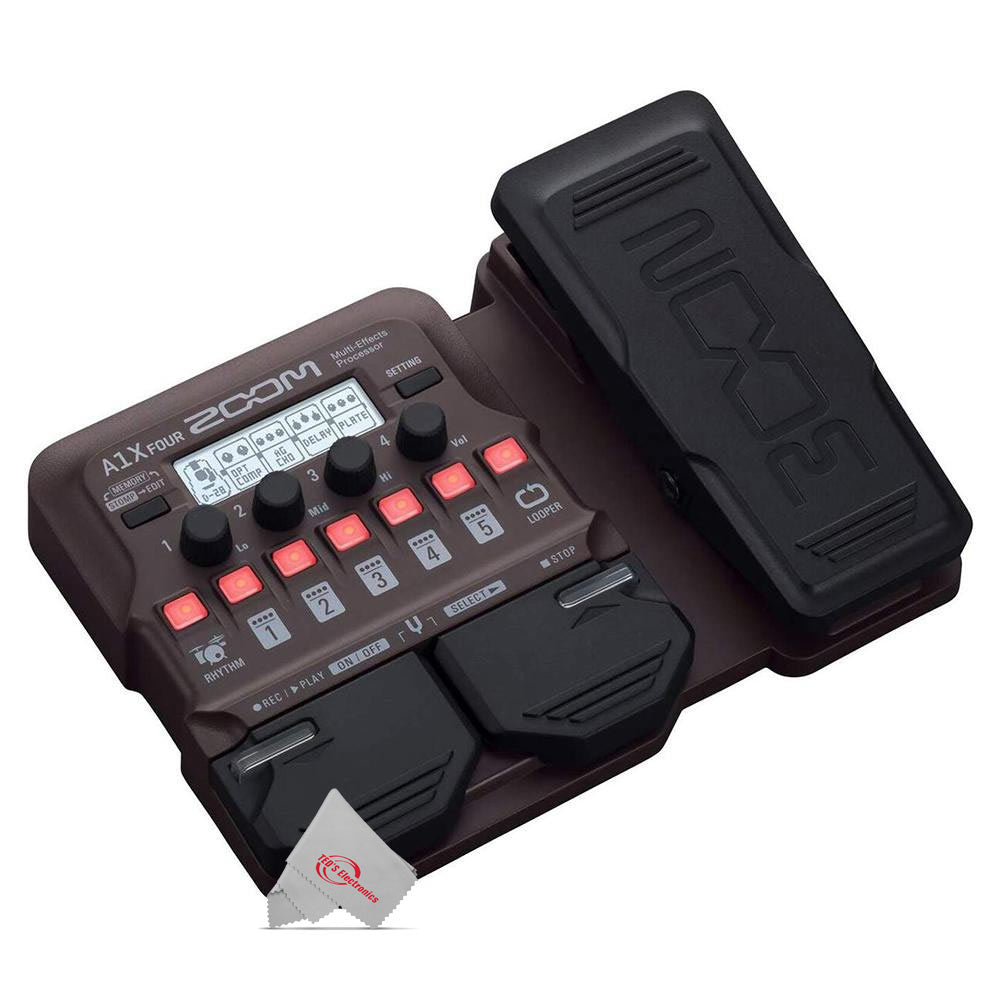

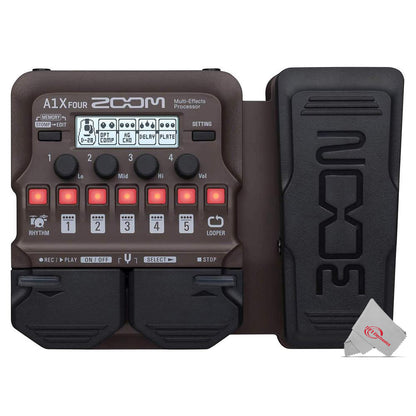

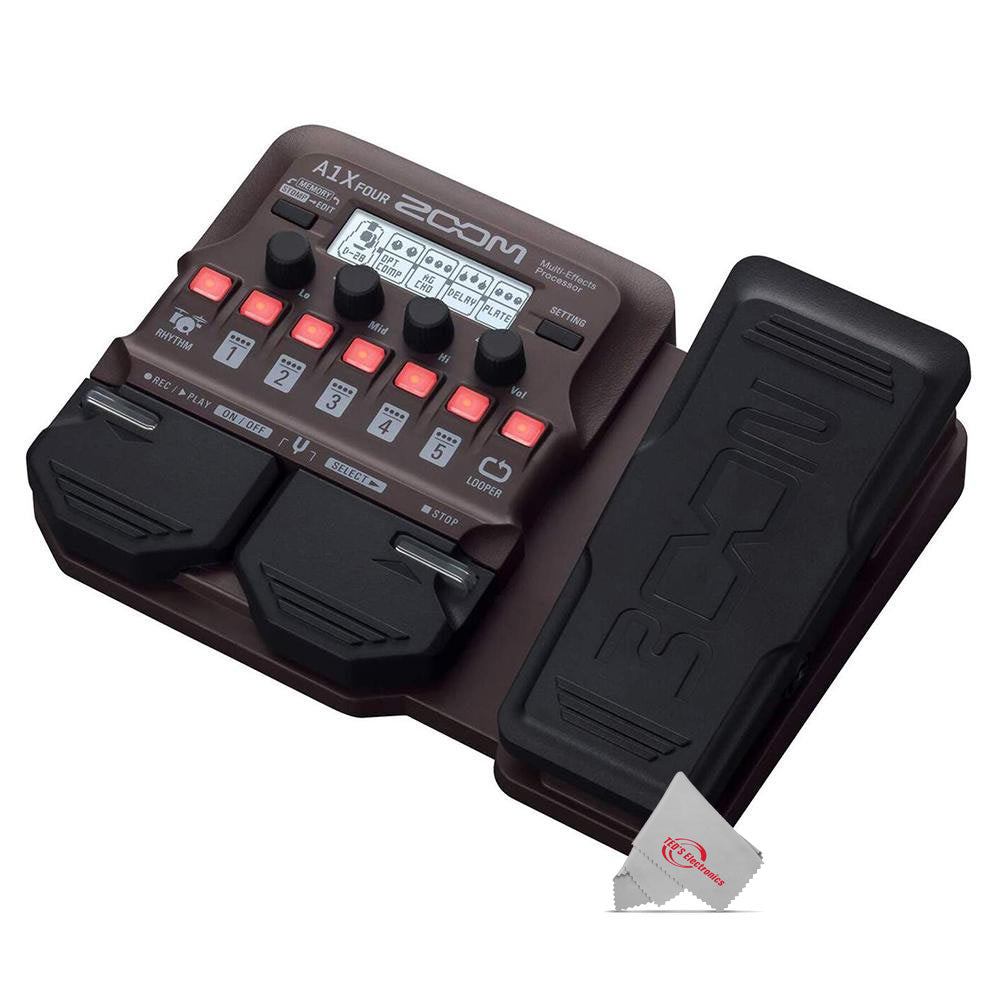

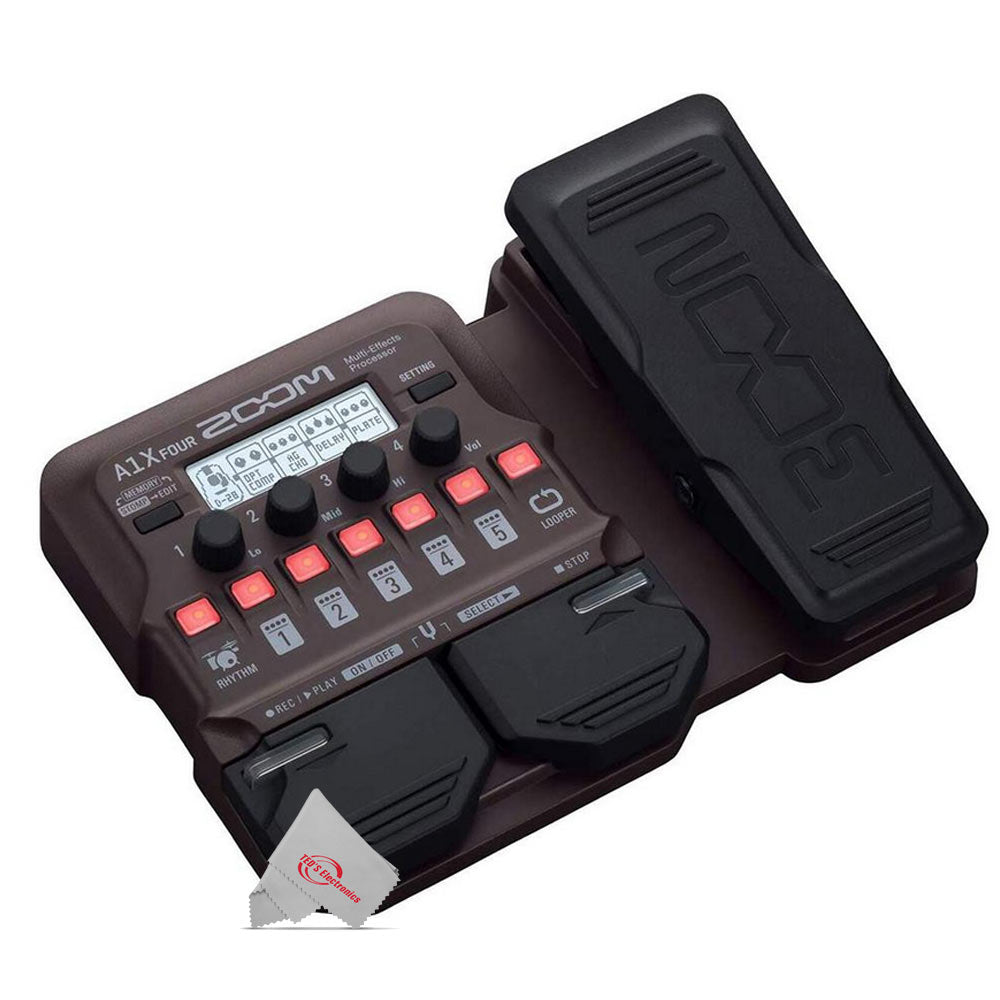

The ZOOM A1X Four was made with you in mind. This amazing multi-effect processor is jam-packed with more than 80 effects including 35 acoustic-optimized effects. You’ve got plenty of processing power on tap, enabling up to five simultaneous effects, chained together in any order. The A1X Four contains 50 memory locations for storing user-created patches, and ZOOM’s Guitar Lab software makes building patches a breeze. This unit yields great-sounding, pro-level sound quality during live use, thanks to two performance modes, hassle-free microphone connection, and an anti-feedback filter. You also get an expression pedal for real-time control over your effects, plus a drum machine, 30-second looper, and super-handy chromatic tuner. If you’re a live acoustic performer, the ZOOM A1X Four is the multi-effect unit you’ve been waiting for.

The ZOOM A1X Four is jam-packed with more than 80 effects, 35 of which are tailor-made for specific acoustic instruments, including acoustic guitar, saxophone, trumpet, violin, harmonica, and acoustic bass. With the A1X Four, you can turbocharge your performances with distortion, chorus, wah, and more. Building patches is a breeze, thanks to ZOOM’s Guitar Lab software. Playing live with the A1X Four is just as effortless, with two performance modes, hassle-free microphone connection (including phantom power for your condenser mics), and an anti-feedback filter. You also get an expression pedal for real-time control over your effects, along with a built-in drum machine with 68 rhythm patterns and a 30-second looper!
  • A1X FOUR offers over 80 built-in effects
  • Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
  • Up to 5 effects can be used simultaneously, chained together in any order
  • 50 memory locations for storing user-created patches
  • Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start & end times
  • 68 built-in rhythm patterns tailored for unplugged styles of music
  • Onboard chromatic tuner
Box Contains
  • Zoom A1X Four Acoustic Instrument Multi-Effect Processor

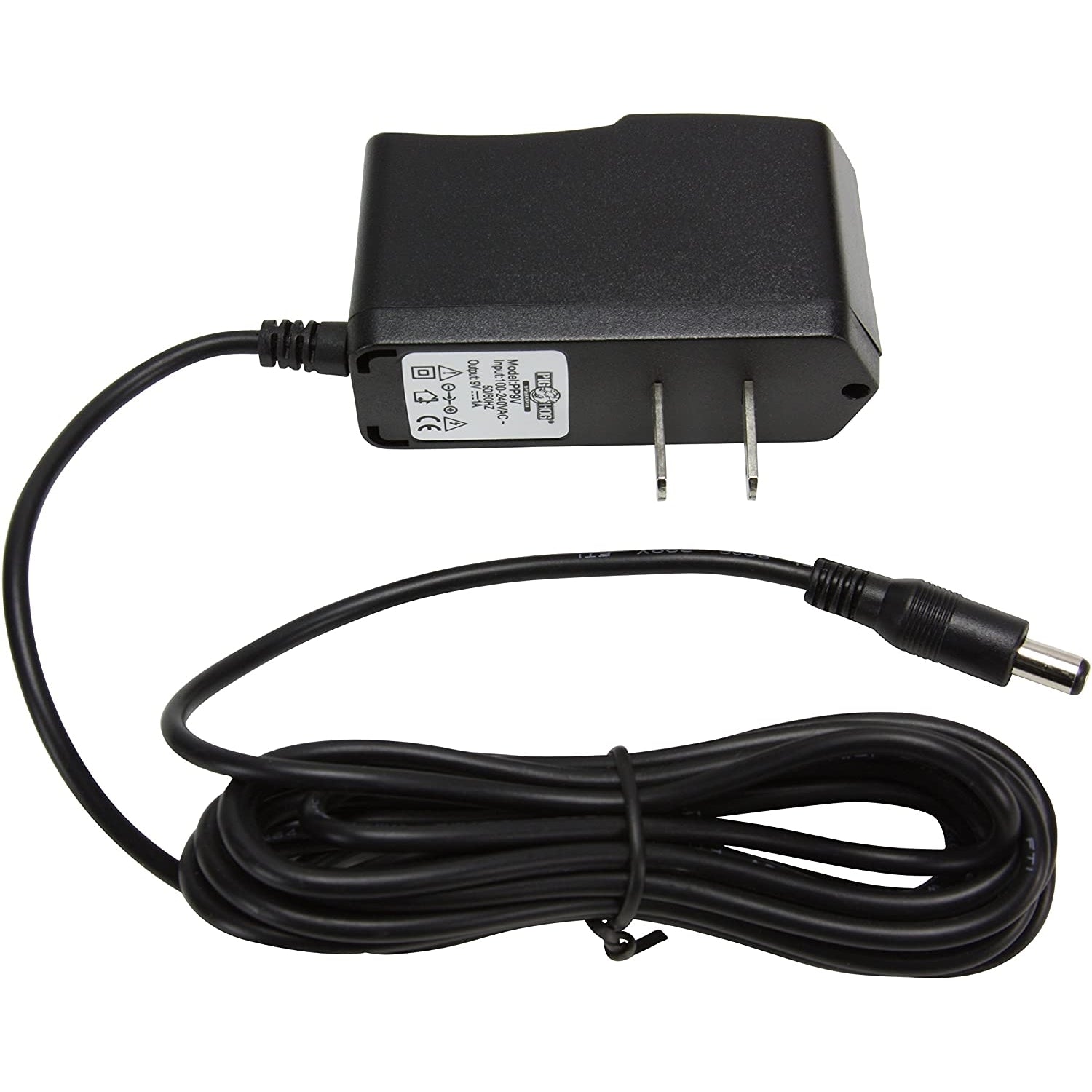

Don't let your power adapter hog up more than one space on your power strip! Pig Power is a 9V power supply with 1000 mA can power up to 10 pedals at once, with a minimal design that requires just a single outlet. The adapter features a generous 10ft cable allows you to set up far from a power source, and 110-240c compatibility is ready for international use. Works with most effects pedals on the market, including Boss(R) PSA or ACA, Dunlop(R) ECB-03, Zoom(R) AD-0006, Danelectro(R) DA-1, DOD(R) PS-200R, Ibanez(R) AC-109, Korg(R) A30950, Morley(R) 9V, and more! One year limited warranty.

  • 9V power supply with 1000 mA can power up to 10 pedals at once
  • Space saving low-profile design takes up a single slot on a power strip
  • 10 ft (3 meter) cable so you can set up further away from a power source
  • 110-240v compatible for international use
  • Works with most effects pedals on the market and is a suitable replacement for any of the following: Boss(R) PSA or ACA, Dunlop(R) ECB-03, Zoom(R) AD-0006, Danelectro(R) DA-1, DOD(R) PS-200R, Ibanez(R) AC-109, Korg(R) A30950, Morley(R) 9V

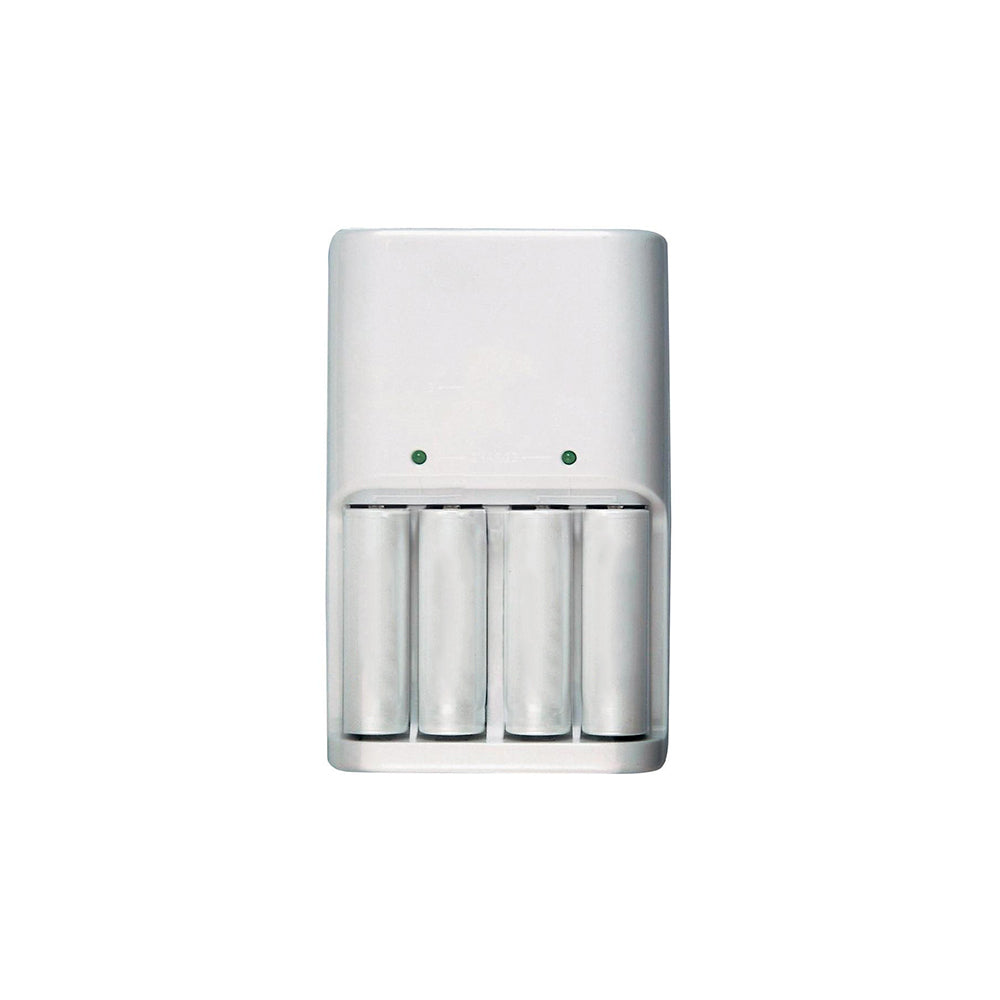

Xtreme Power Series 4AA/AAA Battery Charger
  • AC plug European adapter
  • Charges 4 AA/AAA batteries at once
  • LED charging indicator
  • 100% memory free batteries
  • Rechargeable
  • Includes 4 1.2V 2200 mAh AA batteries
Additional Information

Zoom A1X Four Specs



A1 FOUR

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS5
USER PATCHES50
SAMPLING FREQUENCY44.1 kHz
A/D CONVERSION24-bit, 128� oversampling
D/A CONVERSION24-bit, 128� oversampling
SIGNAL PROCESSING32-bit
DISPLAY128x32 dot matrix LCD

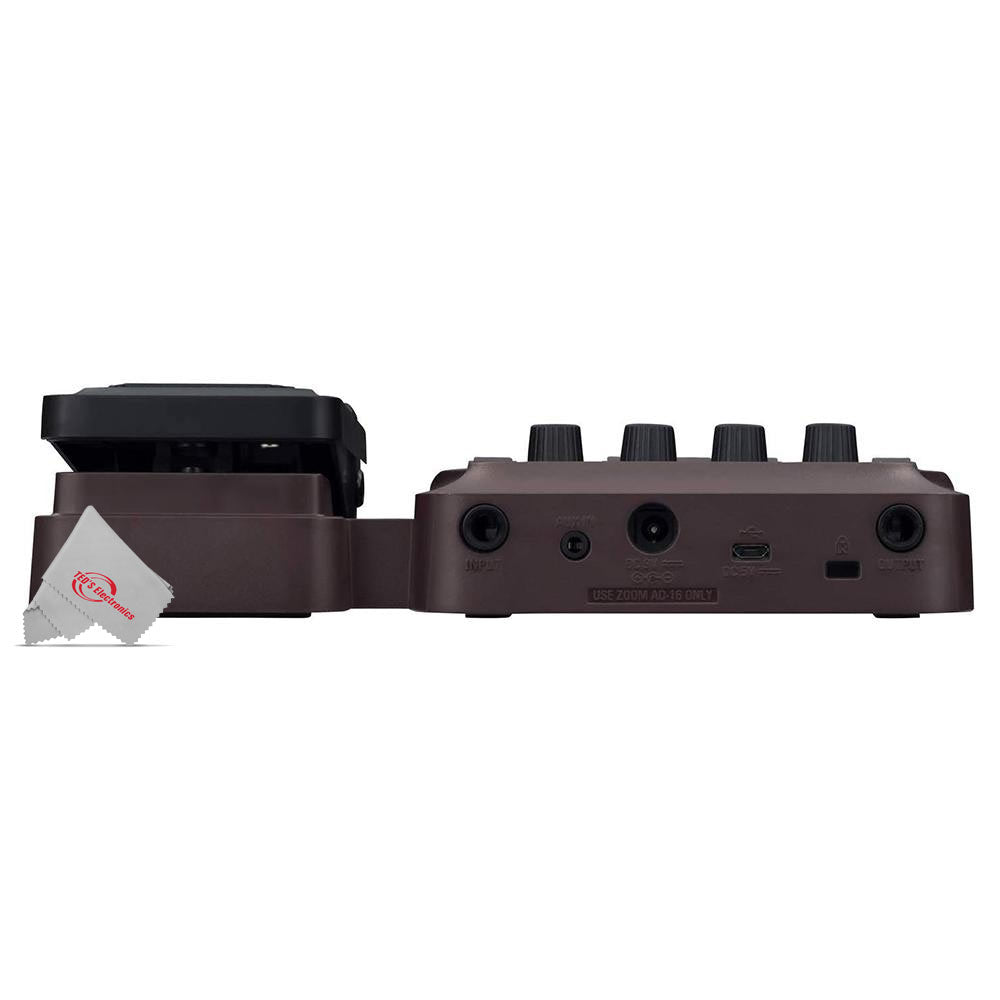

INPUT

INPUTStandard mono phone jack Rated input level: -20 dBuInput impedance (line): 470 k?
AUX INStereo mini jack Rated input level: -10 dBuInput impedance (line): 1k?



OUTPUT

OUTPUTStandard stereo phone jack (combined line/headphone) Maximum output level: Line +2 dBu (10 k? or more output impedance) Headphones 17 mW + 17 mW (32? load)
INPUT S/N120dB
NOISE FLOOR (RESIDUAL NOISE)-97 dBu
POWER AC adapter:9V DC 500mA center negative (ZOOM AD-16) 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USBUSB MIDI, USB Micro-B Power can also be supplied through the USB port.When using a cable designed only for power, other USB functions cannot be used.
EXTERNAL DIMENSIONS Height: 156 mm (D) � 216 mm (W) � 52 mm (H)Weight: 610 g (excluding batteries)



MAA-1

INPUTSINPUT XLR balanced input (2: hot) Input gain: +3 � +30 dBInput impedance: 10 k?Maximum input level: +4 dBu+48V phantom power
OUTPUTSStandard mono phone jack Nominal output level: ?20 dB Maximum output level: +7 dB Output impedance: 1 k?
POWER 2 AA batteries Continuous operation time (when phantom current is 3 mA) About 15 hours (using alkaline batteries) About 15 hours (using nickel metal hydride batteries)
EXTERNAL DIMENSIONSHeight: 177 mm (D) � 23 mm (W) � 25 mm (H) Weight: 70 g (excluding batteries)





* Note: 0 dBm = 0.775 Vrms



Other Accessories Included

Xtreme Power Series 4AA/AAA Battery Charger
Pig Hog PP9V Pig Power 9V DC 1000ma Power Supply
