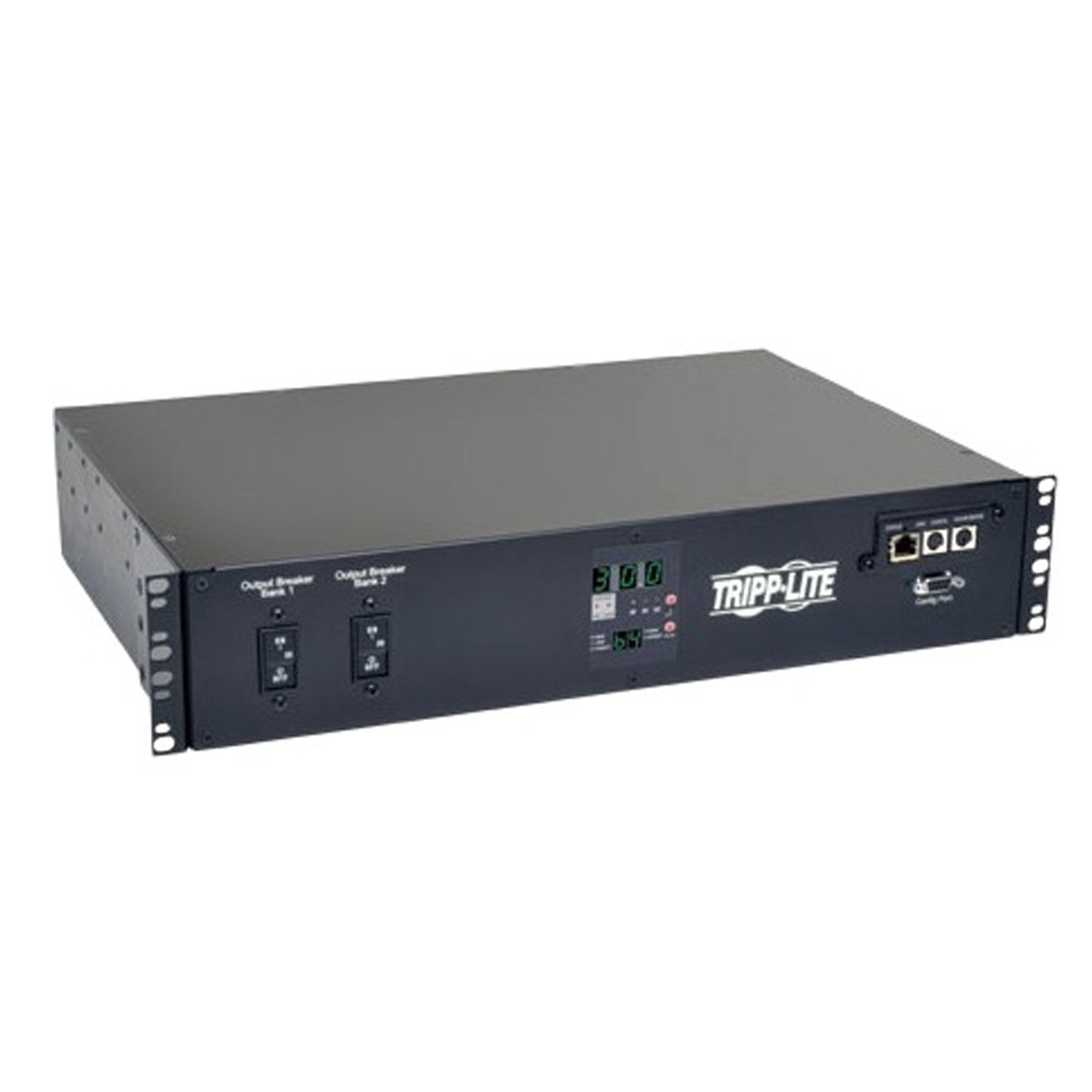

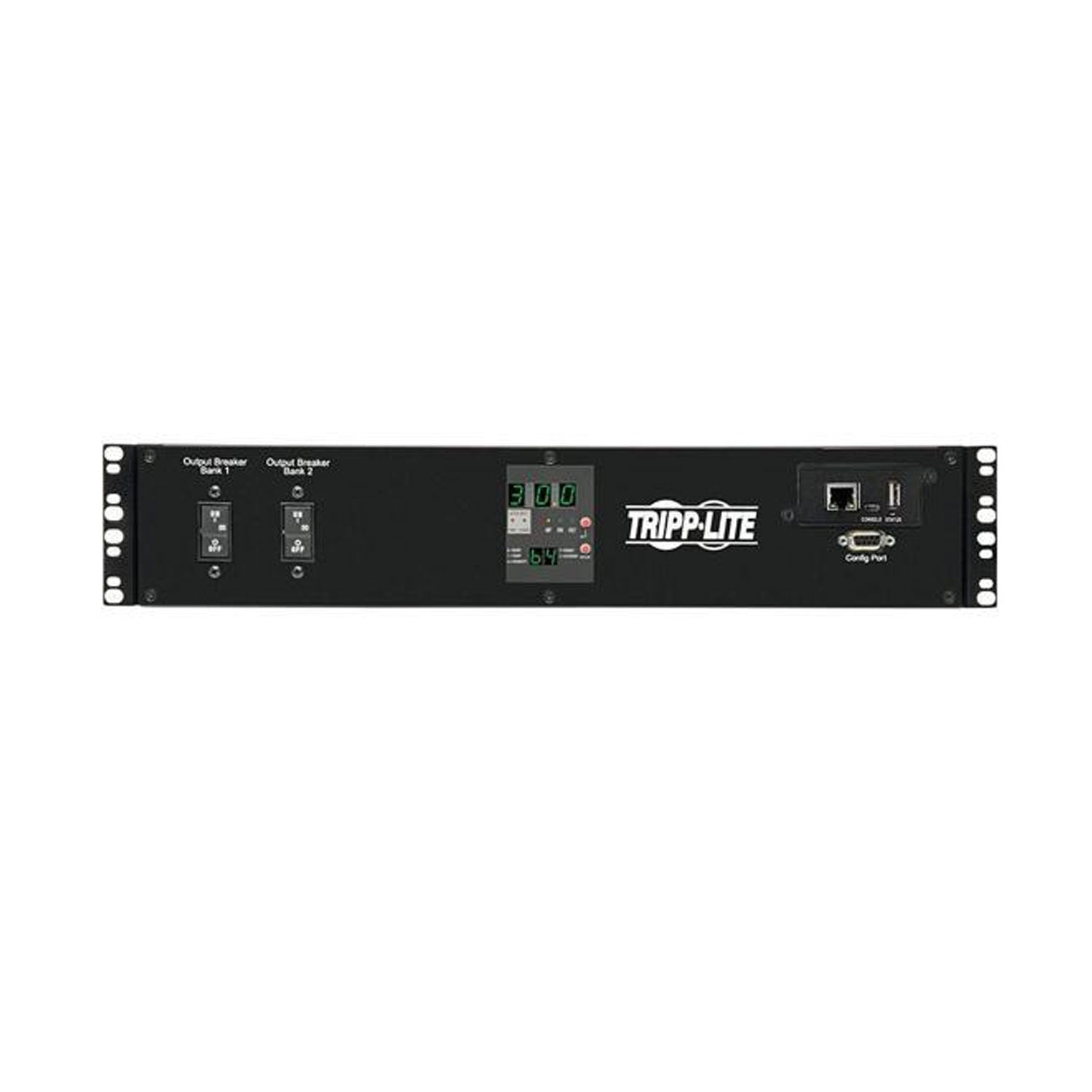

Tripp Lite PDUMH30HVATNET Switched 2U 208V nominal, single phase 30A 10 ft Power Distribution Unit

TRIPP LITE PDUMH30HVATNET SWITCHED 2U 208V NOMINAL, SINGLE PHASE 30A 10 FT POWER DISTRIBUTION UNIT
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds.

Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time.

Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring andemail notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbpsauto-sensing for optimum communication with an Ethernet network. OptionalEnviroSense2 modules (sold separately) provide a variety of environmental monitoringcapabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3,telnet, SSH, FTP, DHCP and NTP.

Features and Benefits:

• Single phase 30A 208/240V Auto Transfer Switch / ATS PDU with Solid State Switching
• Separate primary & secondary inputs enable redundant-power option for non-redundant network devices.
• LX Platform Network Interface

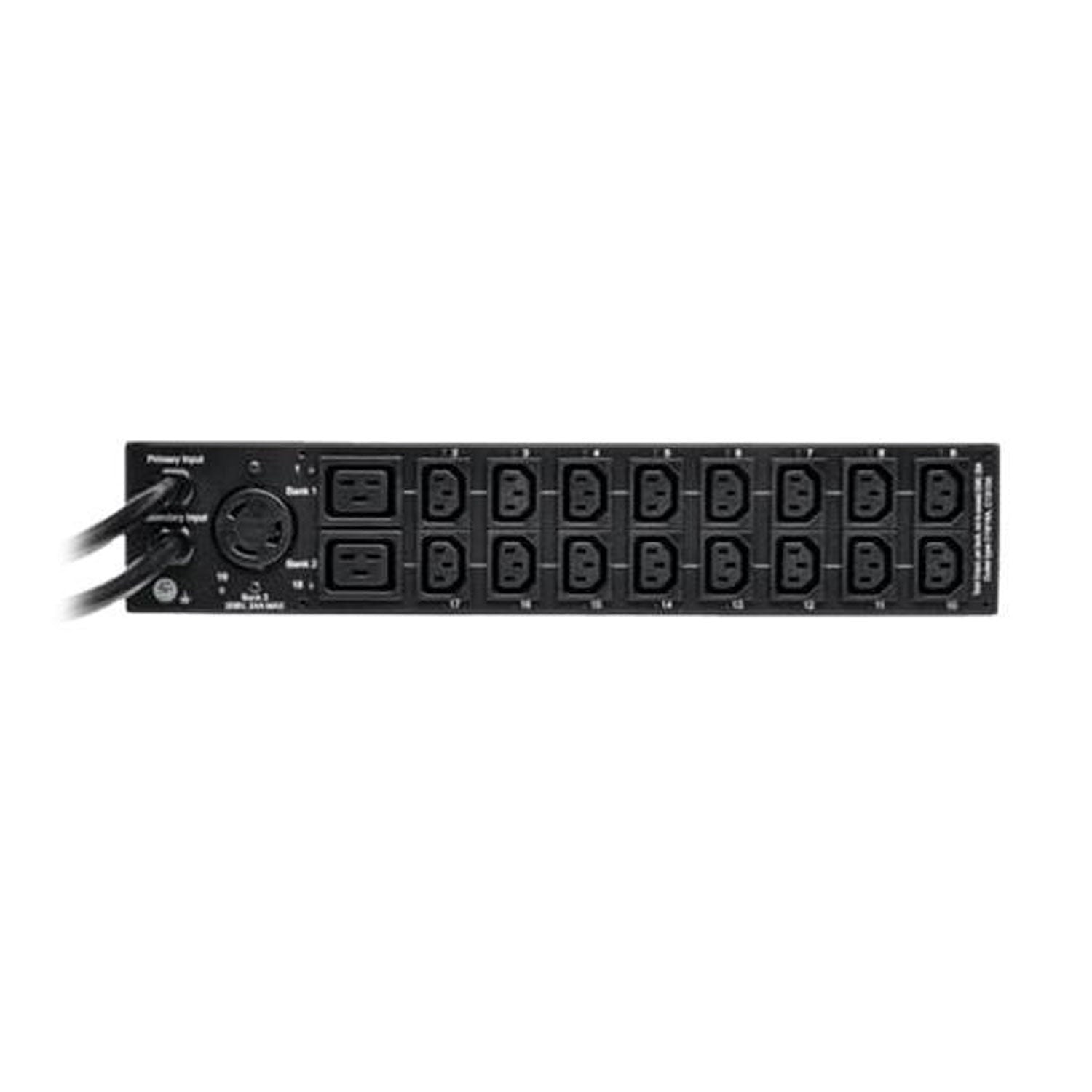

• 2U rackmount, 2 L6-30P inputs, 19 switched outlets (16 C13, 2 C19, 1 L6-30R)

• PDUMH30HVATNET
• 2U ATS PDU
• Rackmount installation brackets
• Cable retention plates and cable ties
• User manual
